ORTHOGRAPHY
Initially we started learning the basic orthographic instruments, how to use them. After a couple of drafts on a 1:1 scale we shifted to drawing spaces on a bigger scale.
Draft Of a Pump Room
Draft Of a Cart
We were assigned in groups of four and given a structure to analyze, draft and make a model, all on a scale of 1:100 (all measurements in CMs)
Our structure was the WALL HOUSE II by Architect John Hejduk.

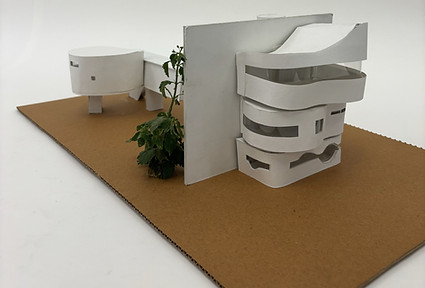

After we drafted the structure we made models in groups of two.
MATERIALS: 0.2mm Photo Mountboard & Cartridge Sheets
Corrugated Cardboard Sheet for the Base
